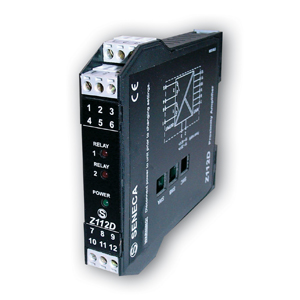

 | Dual amplifier with power supply for proximity sensors. The instrument features galvanic separation at three points: input, output, power supply with 1500 VAC insulation. Provided with 2 independent optoisolated inputs for reed contact, 2 and 3 wire npn sensors with 12 and 24 VDC power supply, NAMUR sensor, 24 VDC pulse, photoelectric sensor, and Hall effect sensor. The two outputs are on two reed relays with 1 SPST contact (capacity 0.1 A 30 VDC/AC resistive load) with common line. Three LEDs on front panel for signal instrument powered and relays energized. The "V0" self-extinguishing glass filled nylon case is the width of 1 DIN module and is designed to fit on 25 mm mounting rail (DIN 46277).
Input: 2 Independent optoisolated inputs from reed, 2/3 wire NPN 12 and 24 VDC, Namur, 24 VDC pulse, photoelectric sensor, and Hall effect sensor.
Output: 2 Independent reed relays each with 1 SPDT changeover with capacity of 0.1 A, 30 VDC/AC (resistive load). |
