Description:

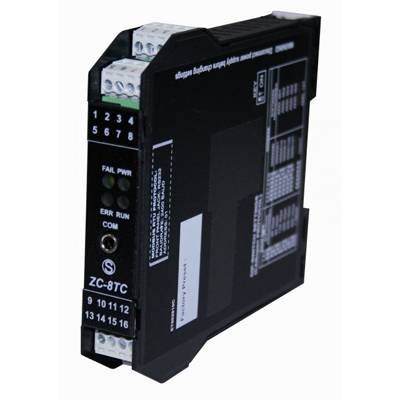

8 CH Thermocouple (J, K, E, N, S, R, B, T) CANopen module

Power Supply:

10 to 40 Vdc; 19 to 28 Vac

Max Consumption:

1 W

Isolation:

1.5 kVac (6 way)

Accuracy:

0.1%

Resolution:

15 bit

Channels:

8

Thermocouple Type:

J, K, E, N, S, R, B, and T (EN 60584-1)

Span:

-10.1 to 81.4 mV

Impedance:

10 MΩ

Analog Conversion Response Time:

< 40 ms

Operating Temperature:

-10 to +65°C

Dimensions:

35 x 100 x 112 mm
