Description:

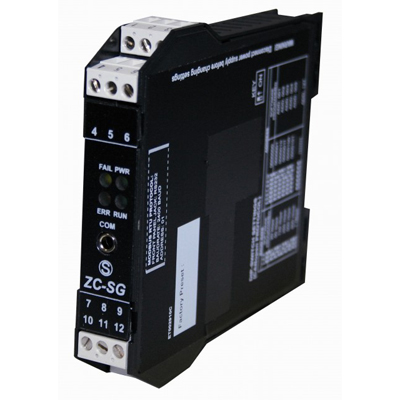

1 CH strain gauge CANopen module

Power Supply:

10 to 40 Vdc; 19 to 28 Vac

Max Consumption:

1 W

Isolation:

1.5 kVac (3 way)

Accuracy:

0.01%

Resolution:

24 bit

Load Cell Analog Input:

Voltage supply 5 Vdc, min impedance 87Ω (350Ω, 4 load cells), 4 or 6 wire connection, sensitivity 1 to 64 mV

Digital Input:

Tare calibration / span

Digital Output:

Stable weight / limit switch

Response Time:

7 ms

Operating Temperature:

-10 to +65°C

Dimensions:

35 x 100 x 112 mm
