Description:

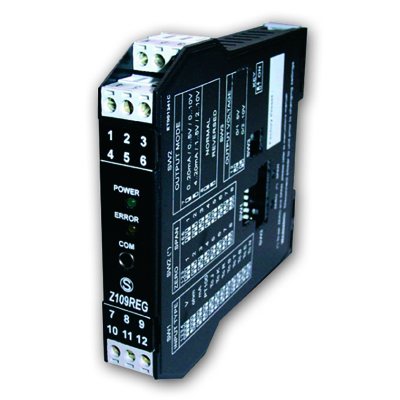

Universal converter with galvanic isolation

Input:

Bipolar voltage up to 10 Vdc 4 scales, bipolar current up to 20 mA, thermoresistance (Pt100, 2/3 wires, -200 to +600°C), thermocouple J, K, R, S, T, B, E, and N type, potentiometer (500 ohm to 1.5 kohm)

Output:

Current (0/4 to 20 mA), voltage (0 to 5/0 to 10/1 to 5/2 to 10 V)

Precision:

0.2%

Power Supply:

19 to 40 Vdc, 19 to 28 Vac

Isolation:

1.500 Vac

Programming:

Dip Switch or software (Z-SETUP)
