Description:

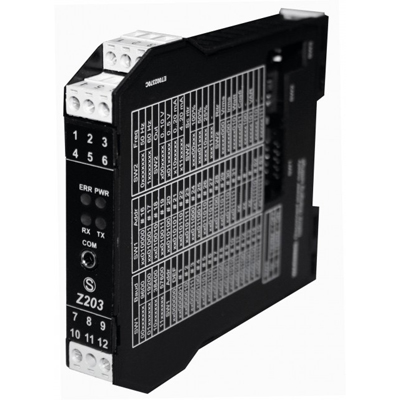

AC single phase network analyzer

Power Supply:

10 to 40 Vdc; 19 to 28 Vac

Input:

Voltage 0 to 500 V, current 0 to 5 A

Output:

Current 0 to 20, 4 to 20 mA; voltage 0 to 5, 0 to 10, 1 to 5, 2 to 10 V

Accuracy:

0.5%

Re-transmitted Variables:

Vrms, Irms, active power, re-active power, cosfi

RS232 Interface:

Front jack, ModBUS RTU slave half duplex, 2.400 bps

RS485 Interface:

DIN rail IDC10 bus, ModBUS RTU slave half duplex, 2.400 to 115.200 bps
