Description:

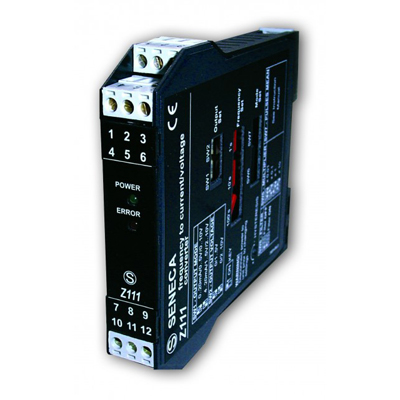

Frequency to DC isolator / converter

Pulse Input:

Contact, npn 2 / 3 wires, pnp 3 wires 24 Vdc supply, namur, photoelectric, Hall sensor, variable reluctance, 24 V pulse, TTL, oval wheel counter flow meters

Frequency:

From 1 mHz (0.001 Hz) to 9.99 KHz

Settable Full Scale:

From 10 mHz (0.01 Hz) to 9.99 KHz

Output:

Current 0 to 20, 4 to 20 mA; voltage 0 to 5/10, 1 to 5, 2 to 10 V

Power Supply:

19 to 40 (9 to 30 opz.) Vdc, 19 to 28 Vac

Isolation:

1.500 Vac

Conformity:

CE, UL-UR CSA
