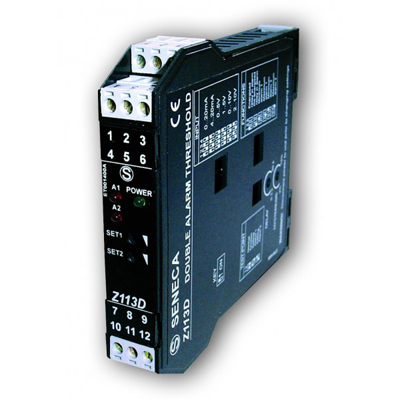

Description:

DC current / voltage, double alarm trip module

Power Supply:

19 to 40 (opt. 9 to 30) Vdc; 19 to 28 Vac 50-60 Hz

Isolation:

1.500 Vac

Input:

Current 0 to 20, 4 to 20; voltage 0 to 5, 1 to 5, 0 to 10, 2 to 10 Vdc

Output:

Nr 2 SPST relay (5 A, 250 Vac)

Linearity:

0.05%

Settings:

Alarm, cut-in delay, hysteresis set-points
