Description:

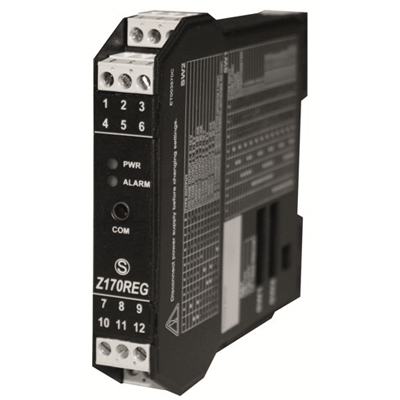

DC duplicator / isolator with universal input and 2 output

Power Supply:

10 to 40 Vdc, 19 to 28 Vac

Power Transducer:

Yes, current input (max 17 V)

Isolation:

1.5 kVac

Input:

Nr 1 channel, voltage range (0 to 10 V), current (0 to 20 mA) with active/passive connection, potentiometer (1 to 100 kΩ), thermocouple (J, K, R, S, T, B, E, and N), thermoresistance (Pt100, Pt500, Pt1000, and Ni100)

Output:

Nr 2 independent channel, voltage range (0 to 10 V); current (0 to 20 mA) with active/passive connection

Accuracy:

0.1%

Operating Temperature:

-10 to +65°C

Dimensions:

100 x 112 x 17.5 mm (W x H x D)
