Description:

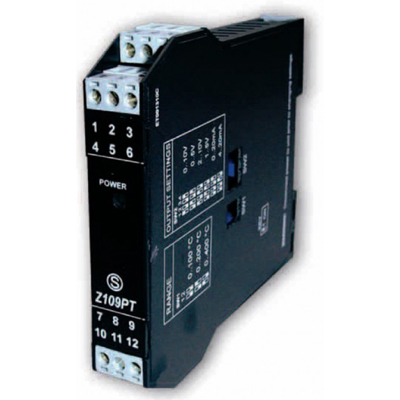

Pt100 to DC isolator / converter

Power Supply:

19 to 40 Vdc; 19 to 28 Vac

Isolation:

1.500 Vac (3 way)

Input:

Pt100 (0 to 100, 0 to 200, 0 to 400 °C), 2 or 3 wire measurement, excitation current 1 mA (approx)

Output:

Current (0 to 20 / 4 to 20 mA), max load resistance 600 ohm; voltage (0 to 5 / 0 to 10 / 1 to 5 / 2 to 10 V), min load resistance 2500 ohm

Accuracy:

0.2%

Configuration:

By DIP-switch
