Description:

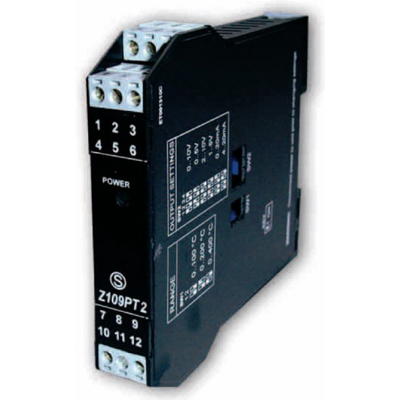

RTD to DC current / voltage isolator converter

Power Supply:

9 to 40 Vdc, 19 to 28 Vac 50-60 Hz

Isolation:

1.500 Vac (3 way)

Input:

RTD (Ni100, Pt100, Pt500, Pt1000, Ni100)

Output:

Voltage (0 to 5 / 0 to 10 / 1 to 5 / 2 to 10 V), current (0..20 / 4..20 mA)

Accuracy:

0.1%

Sample Frequency / Resolution:

From 240 sps (@ 11 bit + sign) to 15 sps (@ 15 bit + sign)

Settings:

Via DIP switch (input / output type, start - end, measure range), or jumper (active / passive output)
