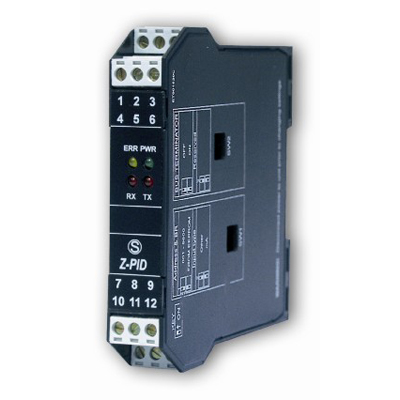

Description:

2-CH analog I/O module + PID control / RS485

Power Supply:

19 to 40 Vdc; 19 to 28 Vac (50-60 Hz)

Transducers Supply:

20 Vdc, 20 mA

Isolation:

1.500 Vac

Dimensions:

17.5 x 100 x 112 mm

Mounting:

DIN 46277, 35 mm symmetrical rail

Input:

1-CH from thermocoulple (J, K, R, S, T, E, B, N); thermoresistances (Ni100 - PT100 3/4 wire); potentiometer (ohm); current up tp 20 mA; voltage up to 10 V

Output:

1-CH 0/4 to 20 mA for regulation loop current

Regulation:

PID integrated, independent input / output

Communications:

RS485 2 wire, ModBUS RTU slave
