Description:

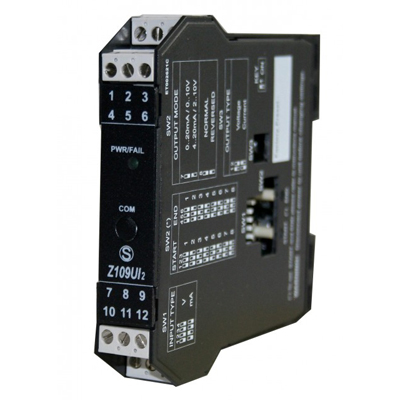

DC current / voltage converter

Input:

Voltage (9 scales, from 100 mV to 20 V), current (bipolar up to 20 mA)

Re-transmitted Output:

Voltage (0 to 10 / 2 to 10 V), current (0 to 20 / 4 to 20 mA)

Accuracy:

0.1% (current / voltage input)

Sample Frequency / Resolution:

From 240 sps (@ 11 bit + sign) up to 15 sps (@ 15 bit + sign)

Power Supply:

9 to 40 Vdc, 19 to 28 Vac 50-60 Hz

Power Transducer:

2 wire, 20 Vdc stabilized, 20 mA max protected against short circuit

Isolation:

1.500 @ 3 way

Settings:

DIP swich or jumper
